Computing Science Higher Revision - Higher Website Design and Development

Intro to Website Design

Website Design and Development will use 3 different coding languages; HTML, CSS and JavaScript. Each have their own purpose and use case.

Recommended sites:

I would recommend downloading Notepad++ at home so you can practice your website development skills out of school. Download from here: Notepad++ (Windows OS only).

If you own a Mac (Apple laptop or desktop) that runs MacOS then you will need to use an alternative - recommended is SublimeText or TextMate.

Analysis

Before we start writing HTML, CSS and JavaScript, we must first understand exactly what it is we are being asked to create. This step analyses the requirements of the website and allows us to plan ahead as to how our website will look, work and function

End-user Requirements

The end user requirements are features or facilities of the website that the user should be able to access. For example, an end user requirement of the website Youtube would be that the user should be able to watch videos. Another example; an end user requirement for the website Amazon is that the user should be able to search, find and buy a product.

Functional Requirements

A functional requirement can be thought of as 'why has the website been created?' if we look at YouTube as an example again, we can say that they functional requirement is that the website should display videos

Design

At the design stage we start to layout both the navigational structure of the website as well as the layout. They include information that helps us when we come to make the webiste, as they will contain instructions and specifications regarding the layout.

Navigational Structure

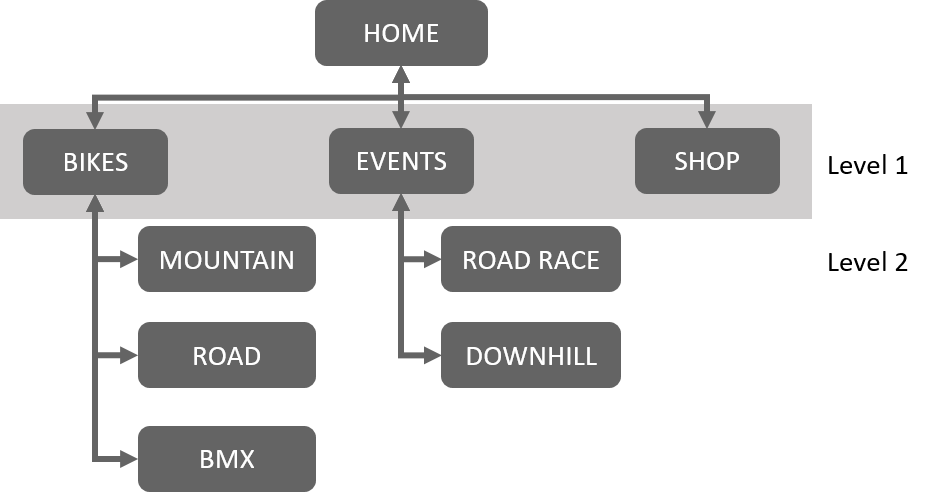

At Higher level, we expand on the N5 diagram to show a multi-level website as well as highlighting the level for pages. You can see in the example below that the first set of pages is considered level 1, this is also the navigation that the user will see on the homepage. The subpages of level 1 are therefore level 2.

Wireframes

Wireframes are used to plan the final layout of the webpages in the website. They are usually done with pencil and paper to sketch out a brief design, but can do be done digitally. At higher you will be expected to produce wireframes for both a website/webpage and a form.

the indented layout of the page
the position of:

navigational bars/links
all text elements on the page
media elements (including file format)
elements that allow a user to interact
form inputs
hyperlinks (including types)

Sometimes wireframes may also include annotations that specify:

background colour
text font
text size
text alignment
text colour
the size of any images e.g 150 x 200 pixels

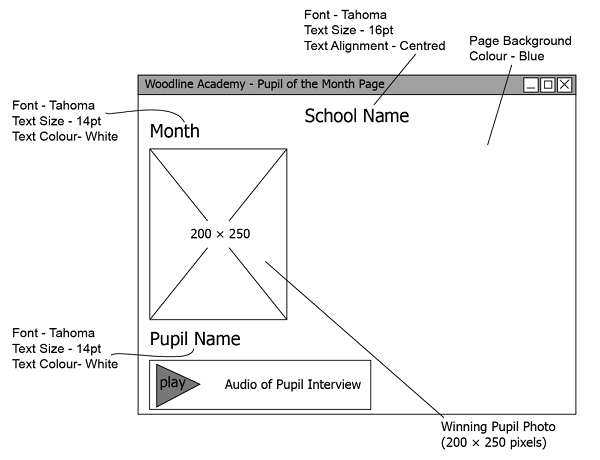

Here is an example of a wireframe for a webpage:

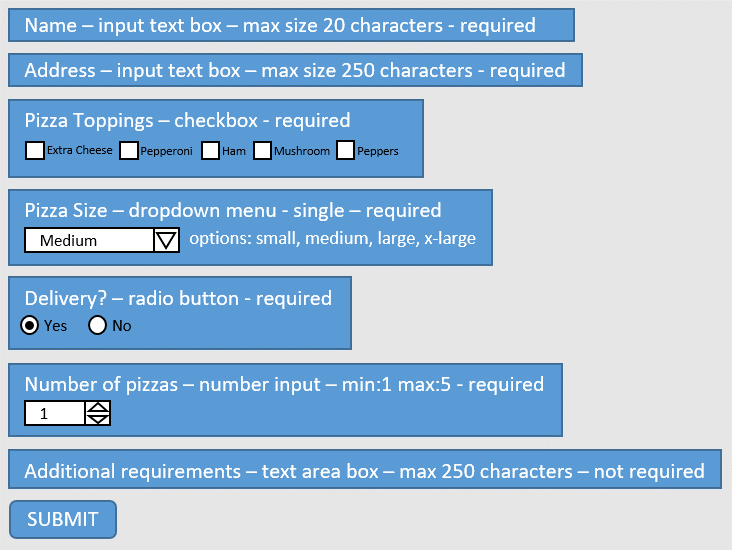

Here is an example of a wireframe for a form:

Implementation

HTML

At Higher level you will be expected to know HTML from National 5 level as well as the HTML5 page structure.

HTML5 Page Structure

There are 5 new tags that you need to be aware of for WDD in Higher;

<header> - This contains elements that will appear at the top of every page eg. a title, banner and logo.
<nav> - This is where the navigation links/buttons will go
<main> - This is where the main content of the webpage will go
<section> - Sections are used within the main tags to define certain sections of the page
<footer> - The footer will usually contain information about the website such as contact and legal info.

HTML Tag List

Below is a list of HTML tags and what they are used for. It isn't a complete list, but a comprehensive list of all the HTML tags that you will be expected to know for Computing Science N5 and Higher. [Click the table header to collapse the table]

Tag:	Definition:
<a>	Defines a hyperlink
<audio>	Defines sound content
<b>	Defines bold text
<body>	Defines the document's body
<br>	Defines a single line break
<button>	Defines a clickable button
<code>	Defines a piece of computer code
<col>	Specifies column properties for each column within a <colgroup> element
<div>	Defines a section in a document
<footer>	Defines a footer for a document or section
<form>	Defines an HTML form for user input
<h1> to <h6>	Defines HTML headings
<head>	Defines information about the document
<header>	Defines a header for a document or section
<html>	Defines the root of an HTML document
<img>	Defines an image
<input>	Defines an input control
<label>	Defines a label for an <input> element
<li>	Defines a list item
<link>	Defines the relationship between a document and an external resource
<main>	Specifies the main content of a document
<nav>	Defines navigation links
<ol>	Defines an ordered list
<option>	Defines an option in a drop-down list
<p>	Defines a paragraph
<script>	Defines a client-side script - usally JavaScript
<section>	Defines a section in a document
<select>	Defines a drop-down list
<source>	Defines multiple media resources for media elements (<video> and <audio>)
<strong>	Defines important text
<style>	Defines style information for a document
<sub>	Defines subscripted text
<sup>	Defines superscripted text
<table>	Defines a table
<td>	Defines a cell in a table
<textarea>	Defines a multiline input control (text area)
<th>	Defines a header cell in a table
<time>	Defines a date/time
<title>	Defines a title for the document
<tr>	Defines a row in a table
<u>	Defines text that should be stylistically different from normal text
<ul>	Defines an unordered list
<video>	Defines a video or movie

CSS

CSS - Cascading Style Sheet is the language that adds style and design to the websites. On top of what you learned in N5 WDD, you will be controlling more of the websites design from external CSS.

Basic CSS

Basic CSS example to give the body a background colour, and style every paragraph tag with font family, font size and colour.

body{
	background-color:blue;
}

p{
	font-family:Arial;
	font-size:23px;
	color:white;
}

The above will make any text in a <p> tag have the font of Arial, 23px font size and be white in colour. The entire body of the webpage will have a blue background.

Grouping and Descendant Selectors

At Higher we will be expected to use Grouping and Descendant CSS selectors.

Grouping Selector

Grouping selectors allows us to reuse the same CSS rules for multiple elements. In the example below I want to apply 2 rules; padding and margin-top, to 4 different tags, main, nav, footer and header, at once. I simply name my tags I want to apply the rule to, and place a comma between each one.

nav, main, footer, header{
	padding:5px;
	margin-top:5px;
}

Descendant Selector

Descendant selectors are used to reduce the need for ID's and class' by targetting tags within tags. For example; if we have a webpage that has lots of div's and inside those div's we have a h3 tag, we could use descendant selector CSS to target only the h3 tags that are inside a div.

div h3{
	color:blue;
	text-decoration:underline;
}

Another scenario would be if I had a nav bar that had an unordered list in and I wanted to style the individual list items a specific way, I would use descendant selectors to target only the <li> tag found inside an <nav> tag.

nav ul li{
	color:blue;
	list-style-type:none;
}

Controlling Appearance

CSS has a property that allows us to control how an element appears on the page. This property is called display. You should be aware of 3 of its values; block, inline and none.

display:block

The border indicates the space this div will take up when the display property is set to block

display:inline

The border indicates the space this div will take up when the display property is set to inline

display:none

When the display property is set to block, no element can be positioned to the side of it.

Controlling Spacing

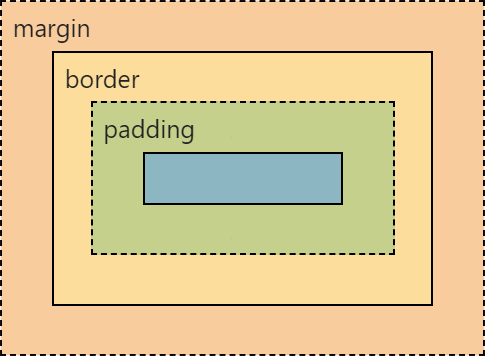

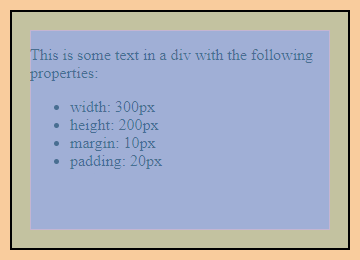

We can control the distance between elements using margins and padding

Margin will control the spacing between elements, where as padding will control the spacing of elements within an element, for example text within a div

Controlling Layout

We can use float property in CSS to control how an element sits. We have 2 properties that we need to know and use; left and right. But we also have another property that works along with float and that is clear. It only has 1 property you will likely need to use; both.

Switch between the float options below and then trigger clear:both on or off to see the impact

Image	Text
float:left float:right	clear:both

Cascading Style Sheets (CSS) is a style sheet language used for describing the presentation of a document written in a markup language such as HTML. CSS is a cornerstone technology of the World Wide Web, alongside HTML and JavaScript.

CSS Rules

Here is a list of ways you will be expected to use CSS for Website Design and Development. Click the heading to hide the table.

Property	Effect	Example
Higher
margin	Margin is used to push an element away from another	margin:10px
padding	Padding pushes content from the edge of the element it is in	padding:5px
display	Display will control how an element appears on the page	display:none display:block display:inline
float	Float is used to change how elements sit with other elements	float:left float:right
clear	Clear will control how the float impacts another element	clear:left clear:right clear:both
list-style-type	This is a specific css rule to change how unordered lists appear	list-style-type:none list-style-type:disc list-style-type:square

Here is a comprehensive list of CSS tags that we might be expected to use in Higher Computing Science Website Design and Development:

Tag:	Definition:
align-content	Specifies the alignment between the lines inside a flexible container when the items do not use all available space
align-items	Specifies the alignment for items inside a flexible container
background-attachment	Sets whether a background image scrolls with the rest of the page, or is fixed
background-color	Specifies the background color of an element
border	A shorthand property for border-width, border-style and border-color
border-collapse	Sets whether table borders should collapse into a single border or be separated
border-color	Sets the color of the four borders
border-radius	A shorthand property for the four border-*-radius properties
border-spacing	Sets the distance between the borders of adjacent cells
border-style	Sets the style of the four borders
bottom	Sets the elements position, from the bottom of its parent element
clear	Specifies on which sides of an element floating elements are not allowed to float
color	Sets the color of text
display	Specifies how a certain HTML element should be displayed
float	Specifies whether or not a box should float
font	A shorthand property for the font-style, font-variant, font-weight, font-size/line-height, and the font-family properties
font-family	Specifies the font family for text
font-size	Specifies the font size of text
font-weight	Specifies the weight of a font
height	Sets the height of an element
left	Specifies the left position of a positioned element
line-height	Sets the line height
list-style-type	Specifies the type of list-item marker
margin	Sets all the margin properties in one declaration
margin-bottom	Sets the bottom margin of an element
margin-left	Sets the left margin of an element
margin-right	Sets the right margin of an element
margin-top	Sets the top margin of an element
opacity	Sets the opacity level for an element
order	Sets the order of the flexible item, relative to the rest
outline	A shorthand property for the outline-width, outline-style, and the outline-color properties
outline-color	Sets the color of an outline
outline-style	Sets the style of an outline
outline-width	Sets the width of an outline
overflow	Specifies what happens if content overflows an element's box
overflow-wrap	Specifies whether or not the browser may break lines within words in order to prevent overflow
overflow-x	Specifies whether or not to clip the left/right edges of the content, if it overflows the element's content area
overflow-y	Specifies whether or not to clip the top/bottom edges of the content, if it overflows the element's content area
padding	A shorthand property for all the padding-* properties
padding-bottom	Sets the bottom padding of an element
padding-left	Sets the left padding of an element
padding-right	Sets the right padding of an element
padding-top	Sets the top padding of an element
position	Specifies the type of positioning method used for an element (static, relative, absolute or fixed)
right	Specifies the right position of a positioned element
text-align	Specifies the horizontal alignment of text
text-indent	Specifies the indentation of the first line in a text-block
text-justify	Specifies the justification method used when text-align is "justify"
text-orientation	Defines the orientation of the text in a line
text-overflow	Specifies what should happen when text overflows the containing element
top	Specifies the top position of a positioned element
vertical-align	Sets the vertical alignment of an element
visibility	Specifies whether or not an element is visible
white-space	Specifies how white-space inside an element is handled
width	Sets the width of an element
word-wrap	Allows long, unbreakable words to be broken and wrap to the next line

JavaScript

JavaScript is the language that adds interactivity and dynamic elements to the websites.

For example, move your mouse over the text below and then move your mouse off - notice the change?

EXAMPLE JAVASCRIPT

At Higher you will be expected to implement JavaScript using any or all 3 mouse events; onmouseover, onmouseout, and onclick. These events are placed inside the HTML element tag.

<h3 onClick="____">Click Me</h3>
<h3 onmouseover="____" onmouseout="____" >Hover your mouse over me</h3>

What goes inside the quotes is either a function or JavaScript itself. It is cleaner to put a call to a function that we define in <script> tags that sit inside the <head> tag.

<head>
	<script>
		function changeToRed(){
			document.getElementById("target").style.color="red";
		}
	</script>
</head>

<h3 onClick="changeToRed()">Click Me</h3>

All of our JavaScript should go in the script tags

JavaScript Examples

Image Change

Change an image when we move our mouse over then return the image back to the original when the mouse moves off.

function imgA(){
			document.getElementById("imgChange").src = "../images/js_imgA.png";
		}

		function imgB(){
			document.getElementById("imgChange").src = "../images/js_imgB.png";
		}

Image Size

Increase image size when we move our mouse over it, return the image back to the original size when mouse moves off the image.

Image Reveal Text

We can show and hide text when we click an element

Text Effect

JavaScript can also affect text. Hover your mouse over the following text:

This text can be made bold when the user hovers their mouse over, and then returns back to normal weight when the mouse moves off.

Image Reveal

onClick applied to a piece of text to reveal a relevant image.

Pizza
Burger
Fries

Testing

You will be conducting the testing from National 5 level, and adding in more elements for higher -

Usability Testing

Usability testing is a technique used in user-centred design to evaluate a product by testing it on real users performing real tasks.

Usability testing should be focused on the most important user goals (such as being able to change a password) and/or the most important organisation goals (for an ecommerce web site this would be making a purchase). These tasks will be detailed in the User Stories, User Scenarios and Use Cases.

Usability testing involves watching people trying to use something for its intended purpose.

A Persona

This is where someone will adopt an age or experience level, but most likely they will get someone who is of that age or experience to test the system.

Test Cases

Test cases is where there will be a set of instructions to completed whilst observing.

Scenarios

A person will be asked to complete a task but without the steps/instructions given - observing the

Functional Testing

The developers will need to conduct functional testing of the website, this involves;

Input validation

Input validation is tested by checking that every field in a form will or will not accept incorrect data

Links and navigation

Testing links and navigation will be checking;

test the navigational bar links take you to the correct pages
test all external links work correctly
test that all pages can get back to the home page
test all internal links work correctly
test to check if there are any orphan pages (pages that are not linked to any others)

Media and content

This is simply a check to ensure that the text, graphics and video display correctly and in the position in which it was designed to appear

Compatability Testing

This is when you test your website to ensure that it works in the same way across a range of platforms. Please note: the different operating systems is not an acceptable answer.

Device

As there are many different browsers out there it is important to check that the website displays correctly on all of them. The most common browsers are; Chrome, Firefox, Internet Explorer, Safari, and Opera. People will turn away from your website if it does not function properly on their browser.

Browser

Websites can now be accessed from a multitude of different devices and it is the developers (you) responsibility to check that your website is accessible on each type. The different devices are; tablets, smartphones and desktop computers. The difference between these devices will impact how the website is displayed. For example; a tablet has a smaller resolution screen to a desktop.

Compatability testing can expose the following;

issues around font size
problems in the user interface
alignment issues
changes in CSS style and colour
overlapping content (images over text etc)
tables not displaying correctly

Evaluation

You will need to use your testing results to form your evaluation; identifying issues (if any) with the website and reporting on these. If no issues occur (unlikely to happen for your practical assignment) then you can say your website is fit for purpose.

Fitness for Purpose

You will need to revisit the user requirements laid out at the beginning of the website design. Once you have established these you will then check to see if the website you have created meets them. Whether the website does or doe not meet the user requirements you write about this.

Usability

A web site can be described as having good usability if it has clear and concise information and it is easy to navigate for a range of users. The websites can then be evaluated by using the following criteria:

Are the pages laid out appropriately, with a consistent User Interface?
Are navigation and features obvious and working correctly?
Have you catered for your target audience appropriately?
Can the user find the information or features easily?

Computing Scotland
